LG G2 65" SDR Calibration Overview

The LG G2 is a 2022 high-end UHD (3840x2160) WOLED TV from LG, featuring LG's OLED Evo panel with better brightness and efficiency than previous models. The display is a popular choice for home theater and is also often used in color/edit suites as a client review display.

Below is an overview of the performance of the 65" model before and after professional LG G2 calibration.
A 3D LUT calibration was done to achieve the best possible results.

Notes:

  1. the resulting cLUT was loaded into the BMD Micro Converter LUT box for easy LUT management. Alternatively, the cLUT could be uploaded directly into the display, as the LG G2 has internal LUT storage.
  2. for a comparison with the same-year LG C2 model, please visit LG C2 65" SDR calibration overview
  3. an alternative white point (AWP) target could have been used in the calibration, as these WOLED panels can trigger metamerism in observers.

Equipment, software and target used in the calibration:

  • Calibration software: DCM
  • Colorimeter: K-10-A
  • Spectro: CR-300
  • Patch generator: DaVinci Resolve, SDI out
  • Calibration target: Rec 709 D65 G2.4 120 nits (SDR)
  • LUT holder: BMD Micro Converter 33^3

Native Gamut

This is the native gamut (before calibration) of the LG G2 compared to the Rec 709 color space calibration target. The display's native gamut fully covers the target color space, making it ideal for precise display calibration. The white point is on target, after manual calibration using the CMS gain controls.

LG G2 65 inch SDR native gamut pre calibration

RGB Balance

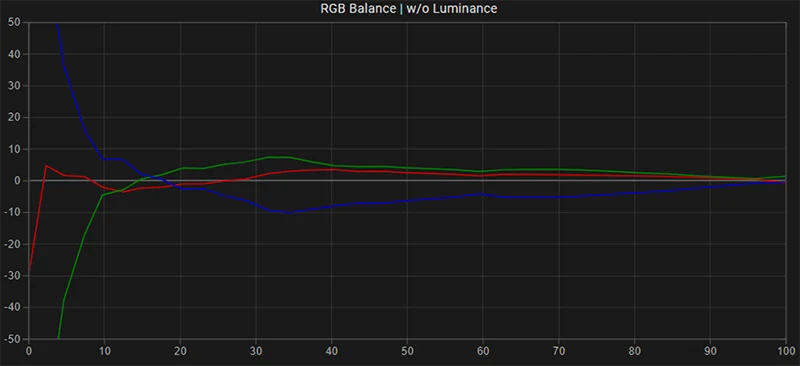

This is the Greyscale RGB balance before LUT calibration, after manual calibration using the CMS bias/gain controls - a yellow tint remains in the mid-tones.

LG G2 65 inch SDR RGB balance pre calibration

EOTF: Gamma

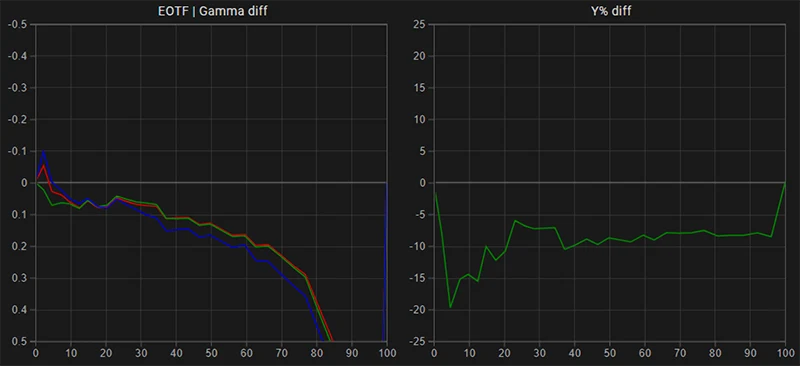

This is the native gamma and luminance response of the LG G2. The reference line is configured for the calibration target of G2.4. In its default native state, the display's brightness is significantly lower than the calibration target.

LG G2 65 inch SDR EOTF gamma tracking pre calibration

Calibration

After display preparation and configuration, a large display profile is run to create a detailed characterization of the display. From that profile data, a 3D LUT is then generated by DCT and loaded into the BMD Micro Converter LUT box.

Gamut & White Point (post)

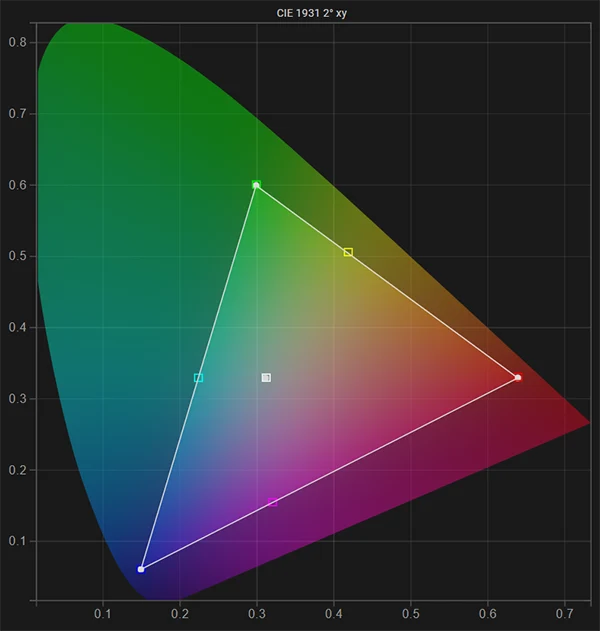

Gamut (post calibration) compared to the Rec 709 D65 target - both color space and white point are on target.

LG G2 65 inch SDR gamut & white point post calibration

RGB Balance (post)

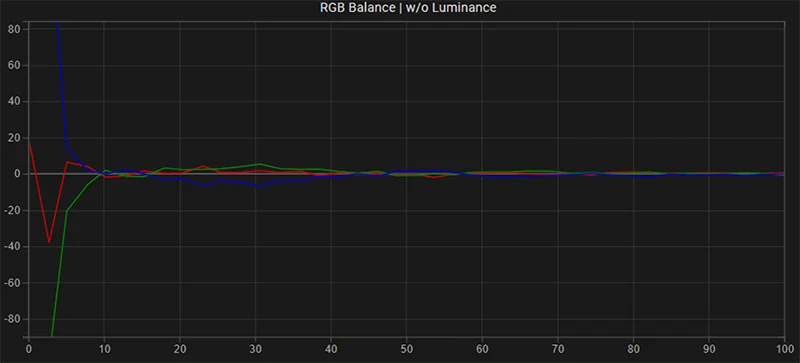

This is the Greyscale RGB balance post-calibration, excellent result.

LG G2 65 inch SDR RGB balance post calibration

EOTF: Gamma (post)

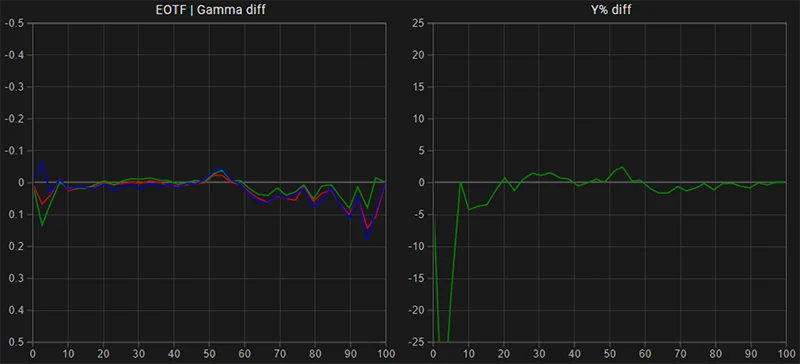

This is the gamma and luminance response of the LG G2 after calibration compared to the reference calibration target G2.4. The display now tracks the reference very closely.

LG G2 65 inch SDR EOTF gamma tracking post calibration

Color Error: delta E 2000 (post)

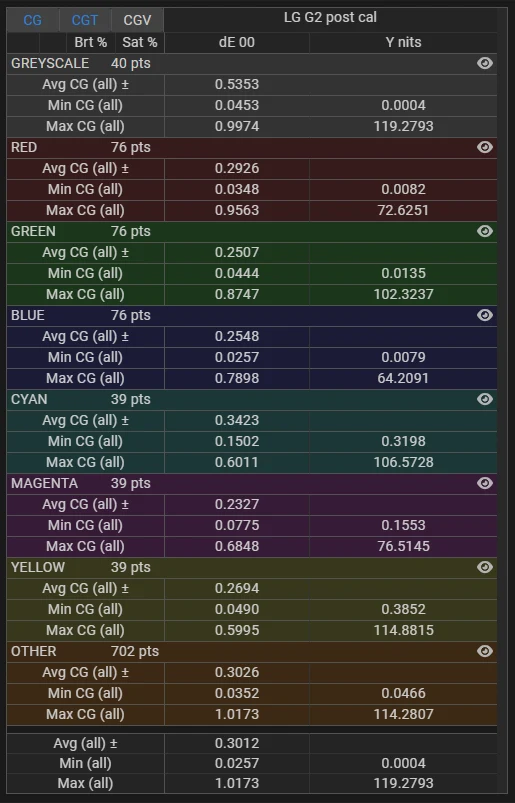

These are the dE 2000 stats post calibration for a 1,100 point stress test validation profile. With an average dE 2000 color error of only 0.30, the LG G2 now performs exceptionally well given that the JND (just noticeable difference) for human vision is set at a dE 2000 value of 2.3.

LG G2 65 inch SDR delta E stats post calibration for stress test validation profile
