LG B7 65" SDR Calibration Overview

The LG B7 is a 2017 UHD (3840x2160) WOLED TV from LG, known for its perfect blacks, infinite contrast, and wide color gamut. The display is a staple choice for home theater and is also used in color/edit suites as a client review display.

Below is an overview of the performance of the 65" model before and after professional LG B7 calibration.
A 3D LUT calibration was done to achieve the best possible results.

Notes:

  1. the resulting cLUT was loaded into the BMD Micro Converter LUT box for easy LUT management, the LG B7 does not have internal LUT storage.
  2. an alternative white point (AWP) target could have been used in the calibration, as these WOLED panels can trigger metamerism in observers

Equipment, software and target used in the calibration:

  • Calibration software: DCM
  • Colorimeter: CR-100
  • Spectro: CR-300
  • Patch generator: DaVinci Resolve, SDI out
  • Calibration target: Rec 709 D65 G2.4 120 nits (SDR)
  • LUT holder: BMD Micro Converter 33^3

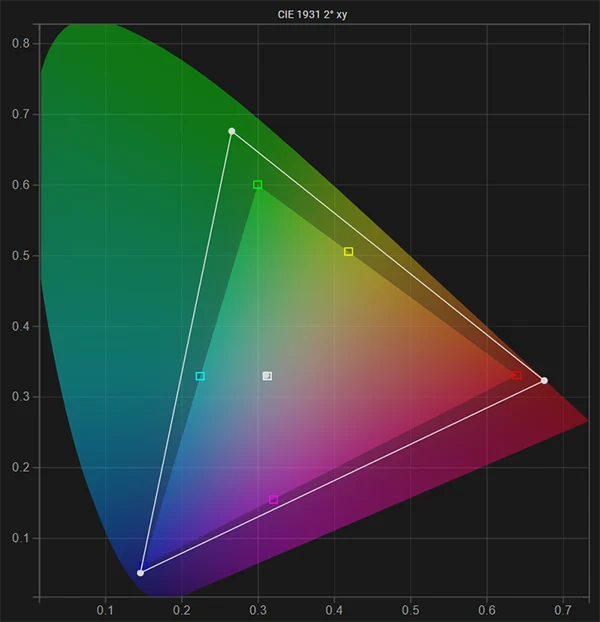

Native Gamut

This is the native gamut (before calibration) of the LG B7 compared to the Rec 709 color space calibration target. The display's native gamut fully covers the target color space, making it ideal for precise display calibration. The white point is on target, after manual calibration using the CMS gain controls.

LG B7 65 inch SDR native gamut pre calibration

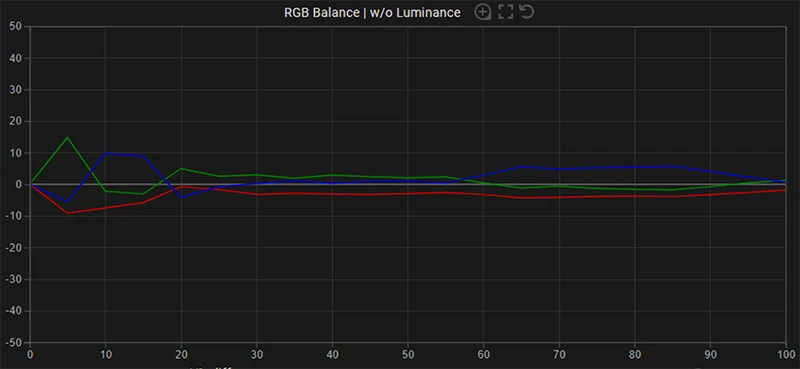

RGB Balance

This is the Greyscale RGB balance before LUT calibration, after manual calibration using the CMS bias/gain controls - a blue/cyan tint remains.

LG B7 65 inch SDR RGB balance pre calibration

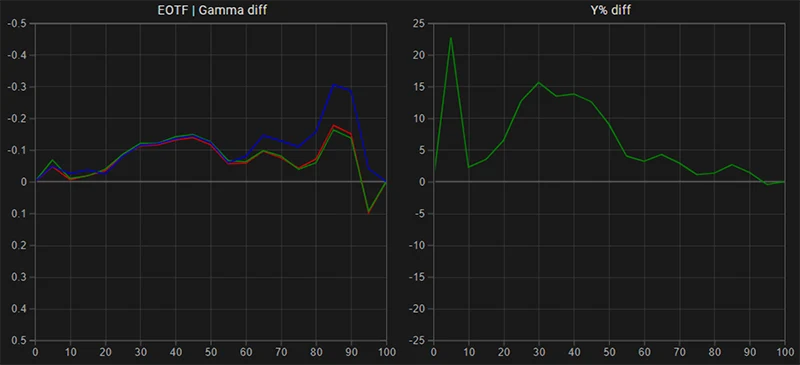

EOTF: Gamma

This is the native gamma and luminance response of the LG B7. The reference line is configured for the calibration target of G2.4. In its default native state, the display's brightness is significantly higher than the calibration target.

LG B7 65 inch SDR EOTF gamma tracking pre calibration

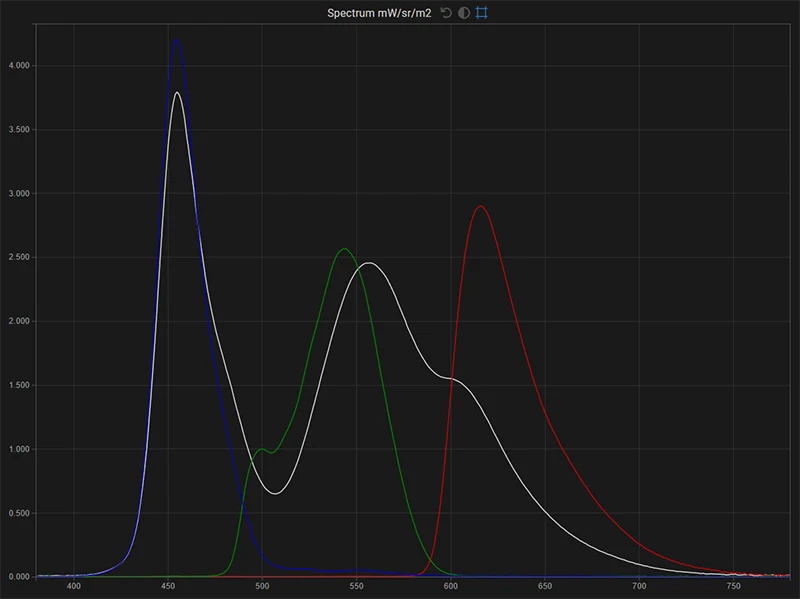

Spectrum Analysis

This is the spectrum of the LG B7 65 inch SDR in native gamut for full white, with the red, green and blue primaries spectral output overlaid to identify color channel issues. The W channel does not closely track the R, G, B color channels (B channel performs best), this is a consequence of WOLED display technology.

LG B7 65 inch SDR spectrum of the display in native gamut for white, red, green, blue

Calibration

After display preparation and configuration, a large display profile is run to create a detailed characterization of the display. From that profile data, a 3D LUT is then generated by DCT and loaded into the BMD Micro Converter LUT box.

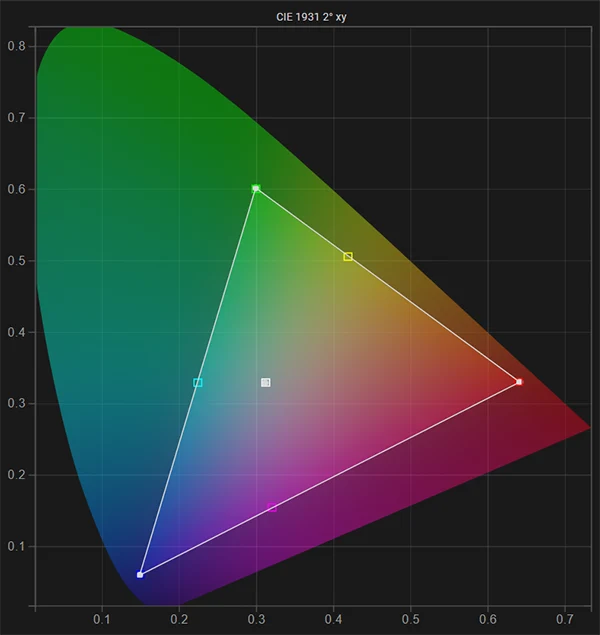

Gamut & White Point (post)

Gamut (post calibration) compared to the Rec 709 D65 target - both color space and white point are on target.

LG B7 65 inch SDR gamut & white point post calibration

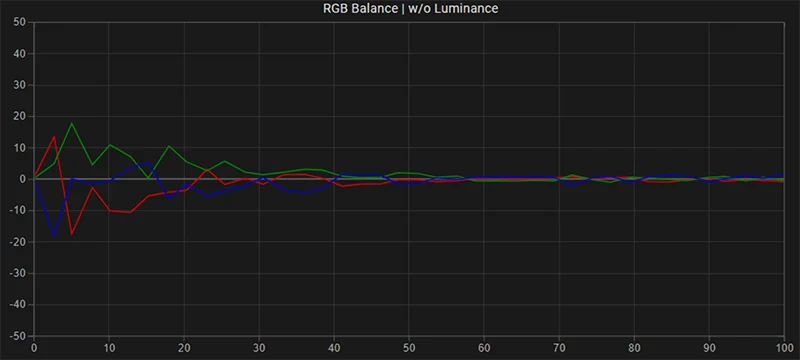

RGB Balance (post)

This is the Greyscale RGB balance post-calibration, much improved.

LG B7 65 inch SDR RGB balance post calibration

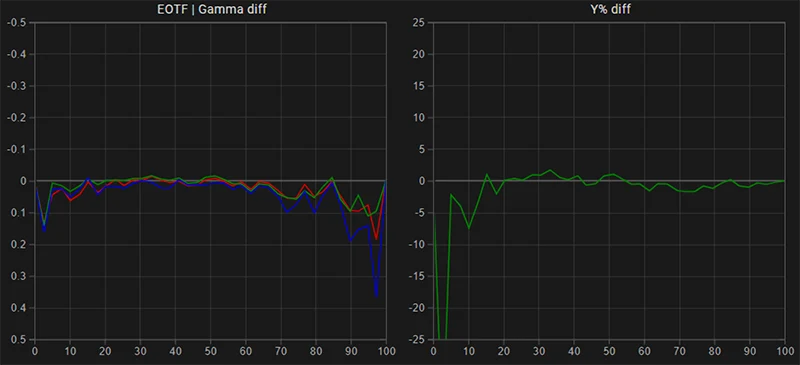

EOTF: Gamma (post)

This is the gamma and luminance response of the LG B7 after calibration compared to the reference calibration target G2.4. The display now tracks the reference very closely.

LG B7 65 inch SDR EOTF gamma tracking post calibration

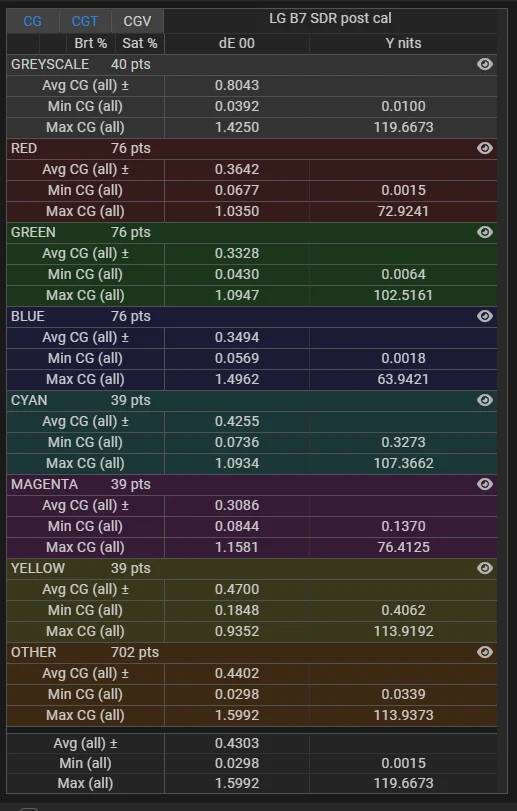

Color Error: delta E 2000 (post)

These are the dE 2000 stats post calibration for a 1,100 point stress test validation profile. With an average dE 2000 color error of only 0.43, the LG B7 now performs exceptionally well given that the JND (just noticeable difference) for human vision is set at a dE 2000 value of 2.3.

LG B7 65 inch SDR delta E stats post calibration for stress test validation profile
